SPECIFICATIONS

Brand Name: Readytosky

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Motors

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: F4 OMNIBUS / Aocoda-RC F405 Flight Control

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Technical parameters: value 3

Tool Supplies: Cutting

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Warm Notice：

Thank you for purchasing our products,When you receive the products, be sure to

connect Betaflight through USB first.Check whether each attitude of  flight controller is normal.

After confirm,then weld your peripheral equipment. If you encounter problems, please contact

customer service for help.

And please note that we are not responsible for after-sales service for man-made damage.

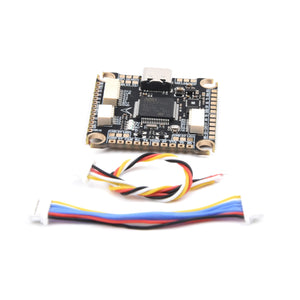

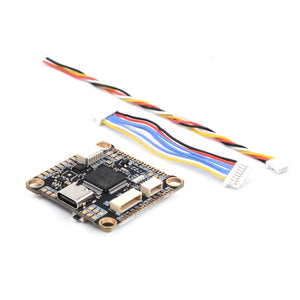

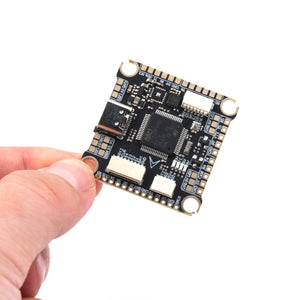

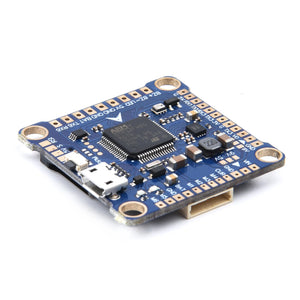

F4 F405 Flight Controller:

Product Parameters:

MCU: STM32F405RGT6 168MHz

Gyroscope: MPU6500/ICM42688(send it at random)

Baro:Bmp280/DPS310 / SPL06-001/ LQTP001HTA (send at random)

OSD: Betaflight SPI OSD DJI HD OSD(UART5)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 12V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)

1x JST-SH1.0_6pin connector (12V/GND/T5/R5/GND/R2)

VTX 12V filtered power

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,
The default receiver input is UART2(You can solder ELRS RX on UART2).

Power:

Input voltage: 3-6S

BEC: 5V/12V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.1A

FC Firmware:

BetaFlight firmware: DAKEFPVF405

INAV firmware:DAKEFPVF405

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 36mm × 36mm

Flight control weight: 7.6g

Flight control onboard voltage sensor.

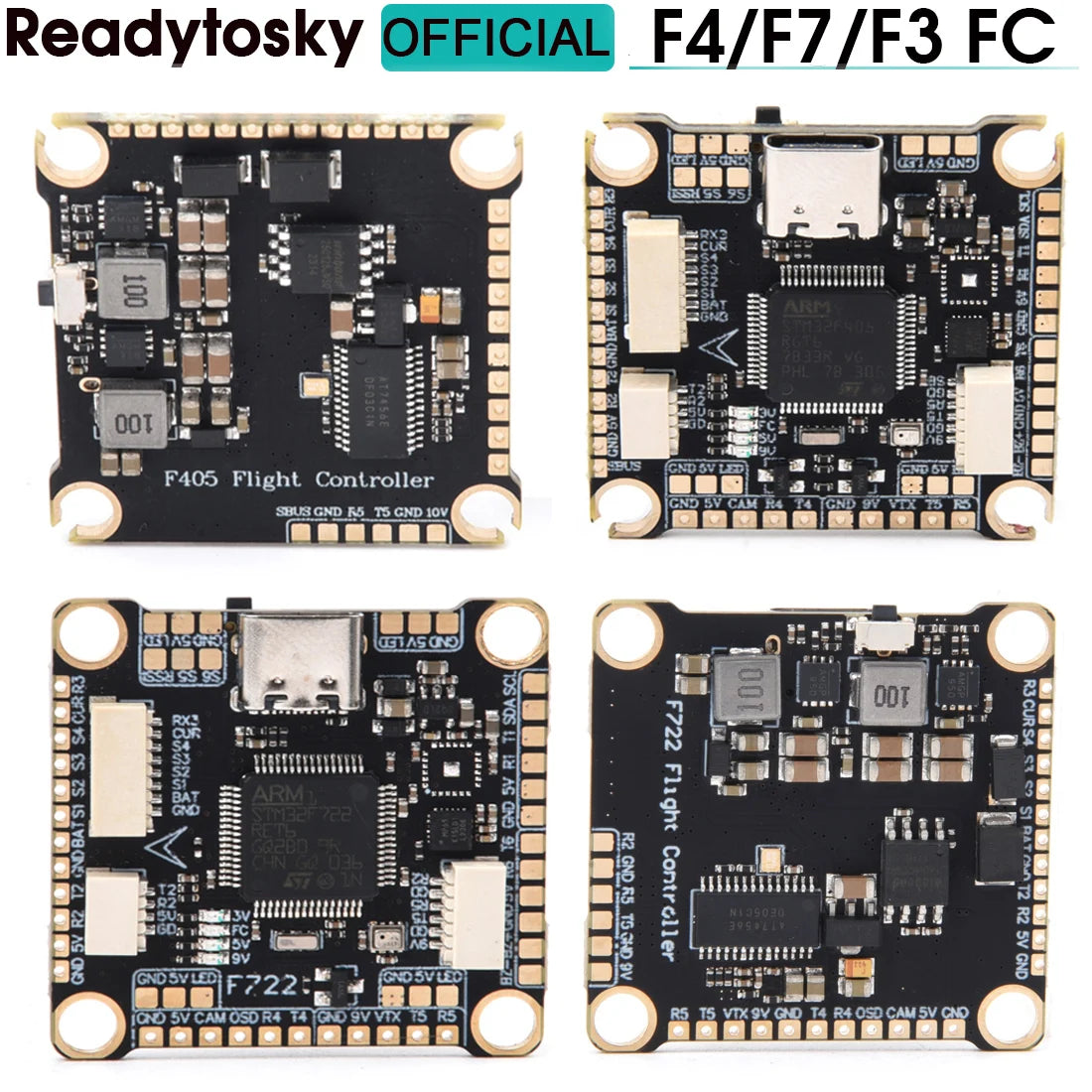

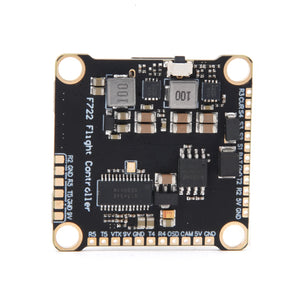

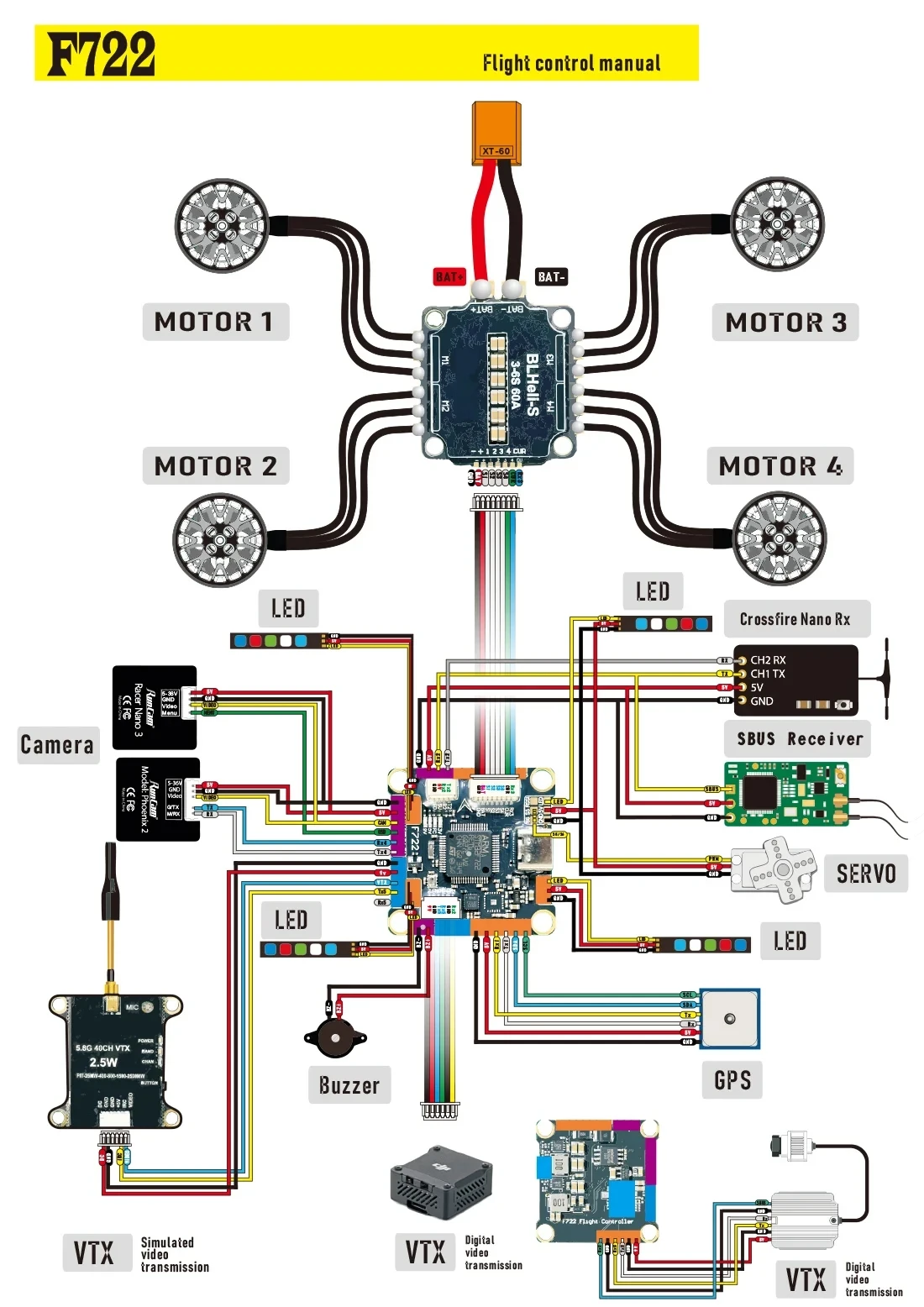

F7 Flight Controller Specifications:

Name: F7 F722 flight controller

Main control chip: STM32F722RET6

MPU: MPU6500/ICM42688 (send at random)

Character overlay: AT7456E

Black box: integrated 16M Flash

Baro:Bmp280/DPS310 / SPL06-001/ LQTP001HTA (send at random)

Serial port: 6 optional

Motor output: 6 channels optional

LED strip: support

Buzzer: support

Camera_Control:support

Input voltage: 3-6S Lipo

Power output: 5V/2A, 12V/2A

Weight: 6.0g

Size: 36x36mm, mounting hole 30.5mm

Firmware: DAKEFPVF722

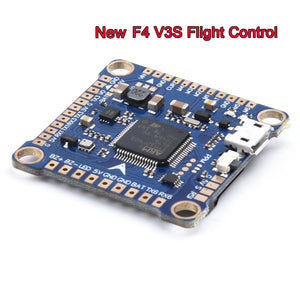

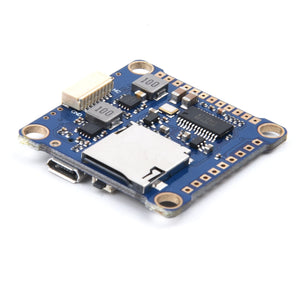

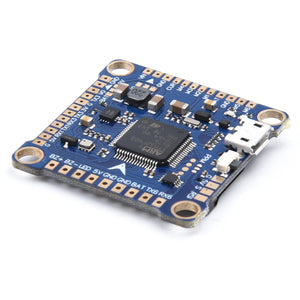

Omnibus F4 V3S Plus flight controller

Specification:

Item name: F4 V3S PLUS Flight Controller

Firmware:Omnibus~f4

Size: 36x36mm

Mounting holes: 30.5x30.5mm

STM32 F405 MCU

Dshot support

Drag and Drop OSD configured via Betaflight

BMI270 / MPU6500 6 axis SPI gyro & accelerometer (send at random )

SBUS / PPM AND Spketrum DSMX ports

MicroSD card blackbox

Baro (BMP280)

5v3a 9V3A BEC

On-board video filters (only 5V to VTX and camera)

Properties:

measured.

Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you'll be tuning pids with your transmitter and

Tear it to the track in no time!

Note ： can use betaflight and INAVsoftware.

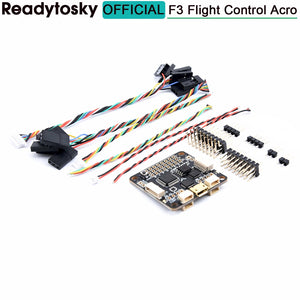

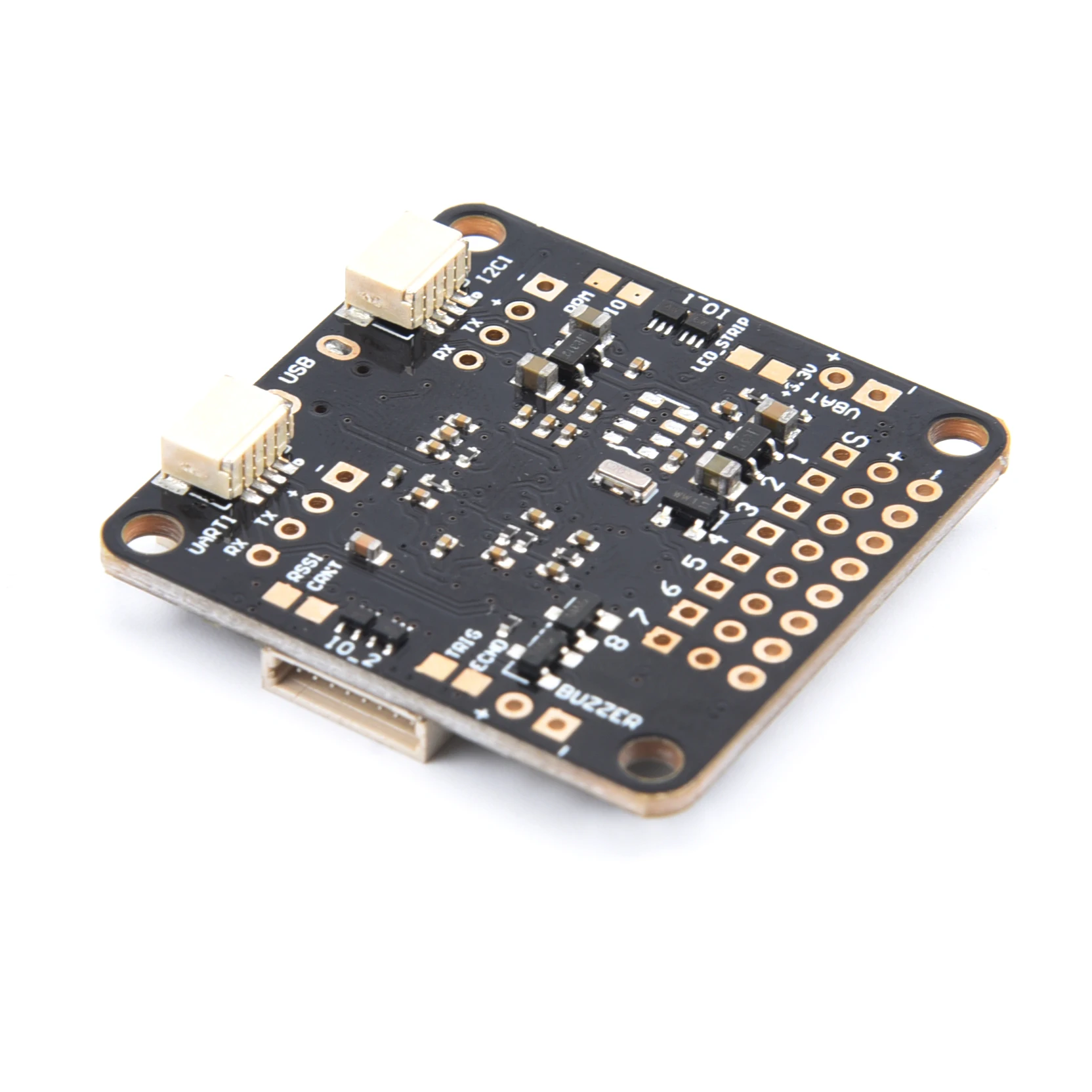

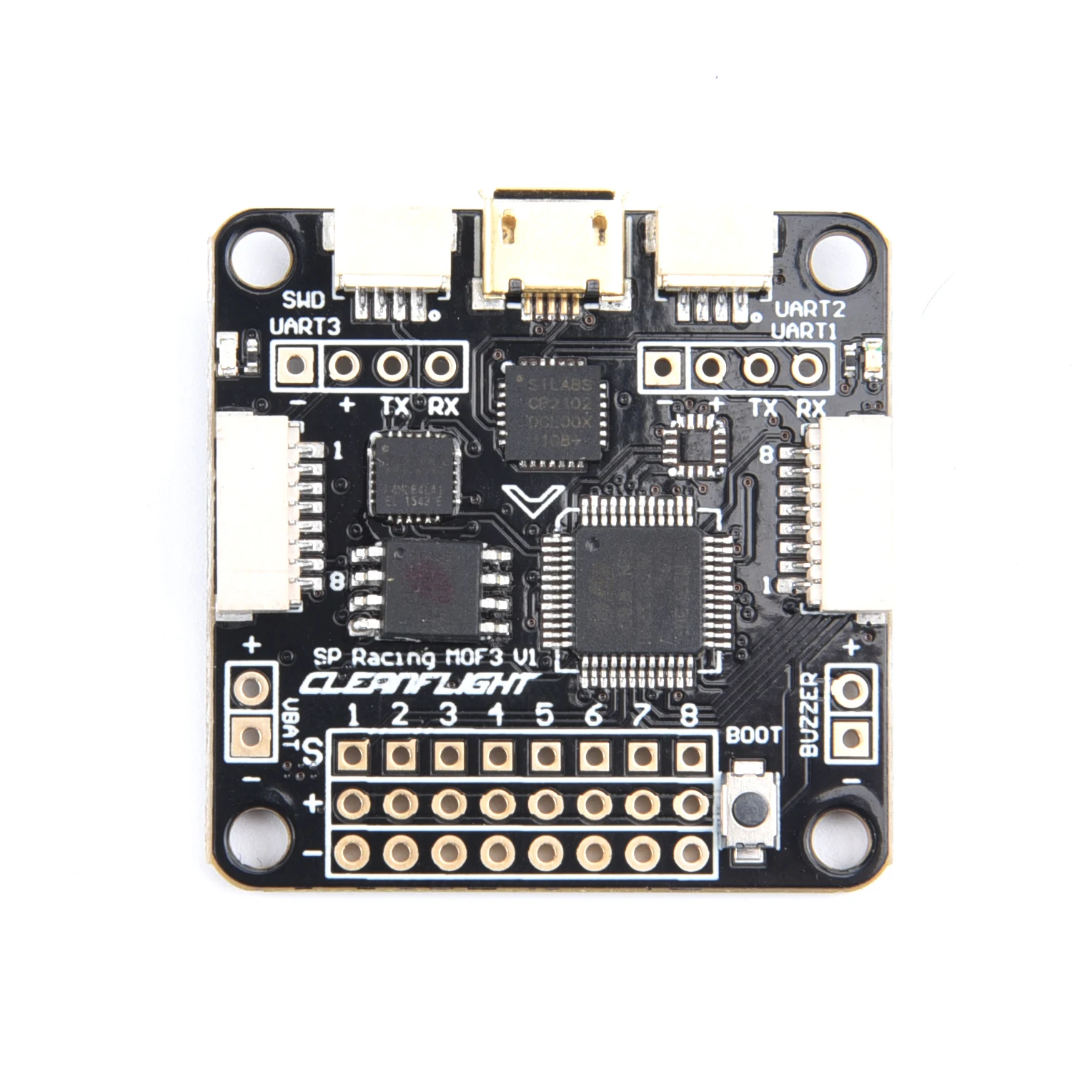

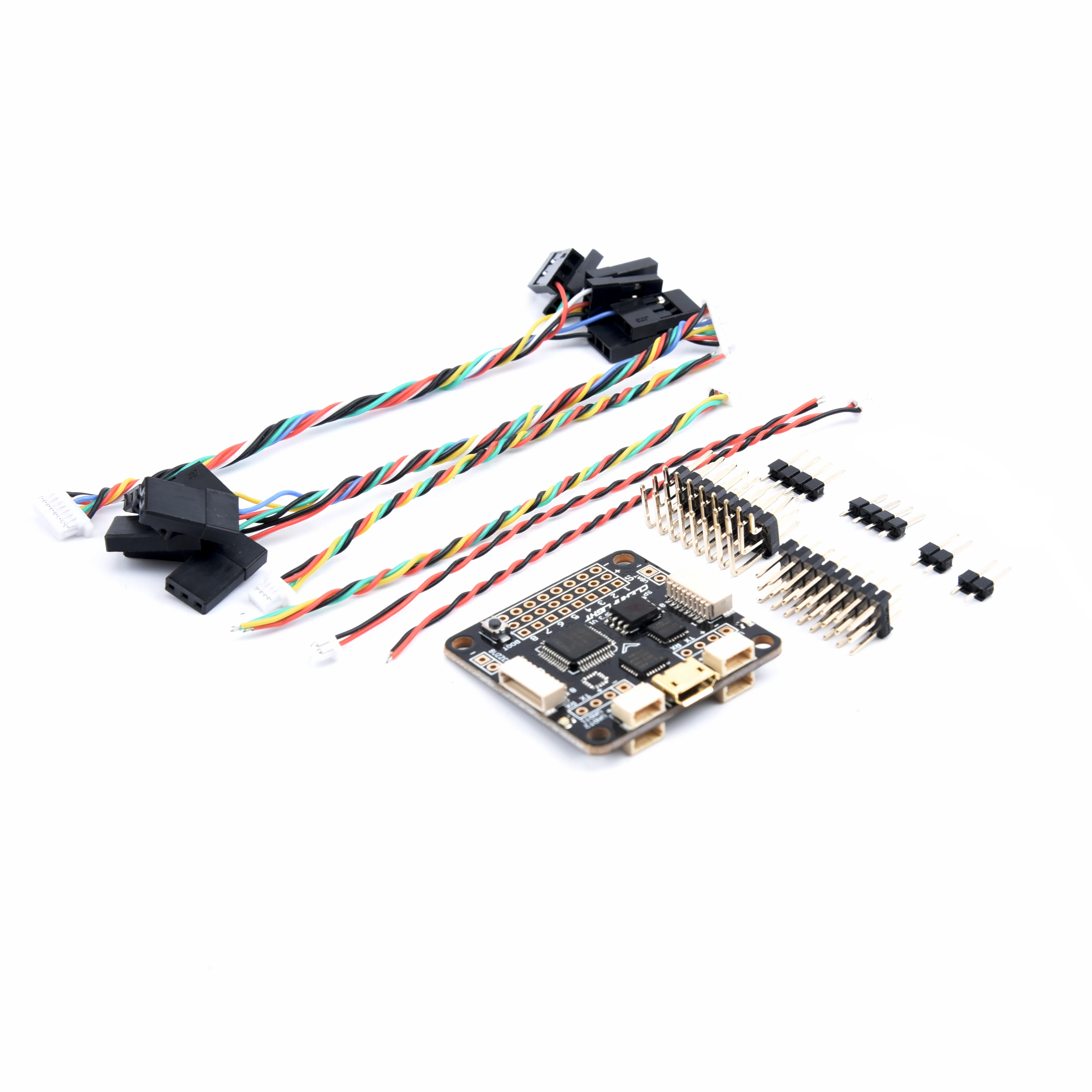

Racing F3 Flight Controller (SPRacingF3) was designed to give awesome flight performance
